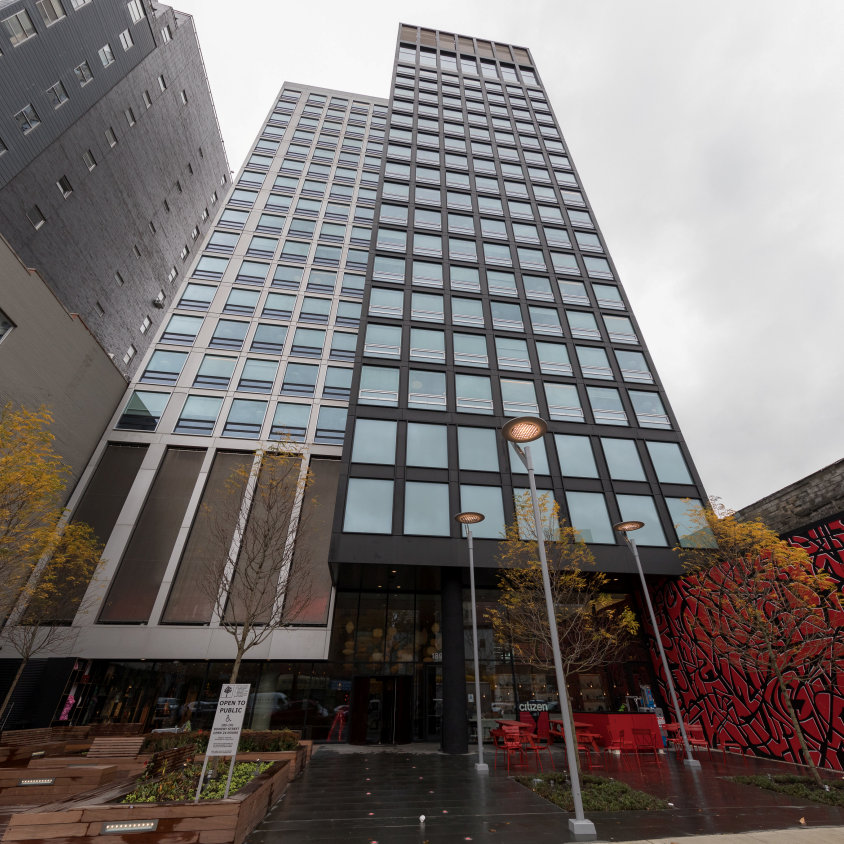

CitizenM Hotel
4 HM Overhead Traction Elevator Installation, NYC, NY (July 2018)

CitizenM Hotel Elevator Installation

New York City, NY


CitizenM Hotel, NYC

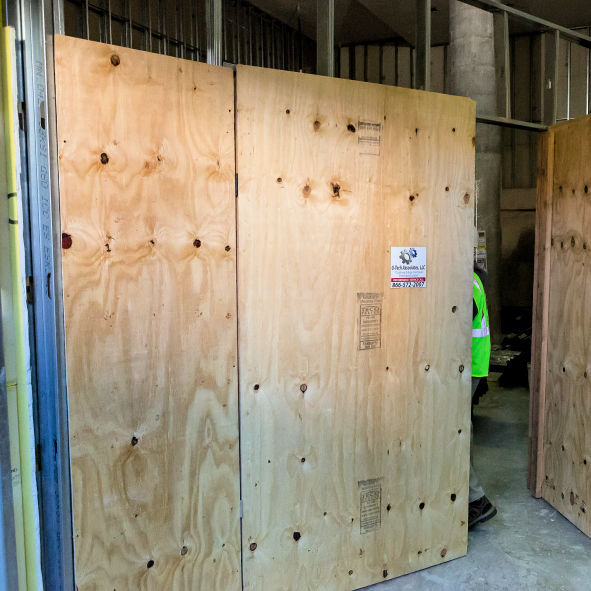

G-Tech Shanty

G-Tech Shanty

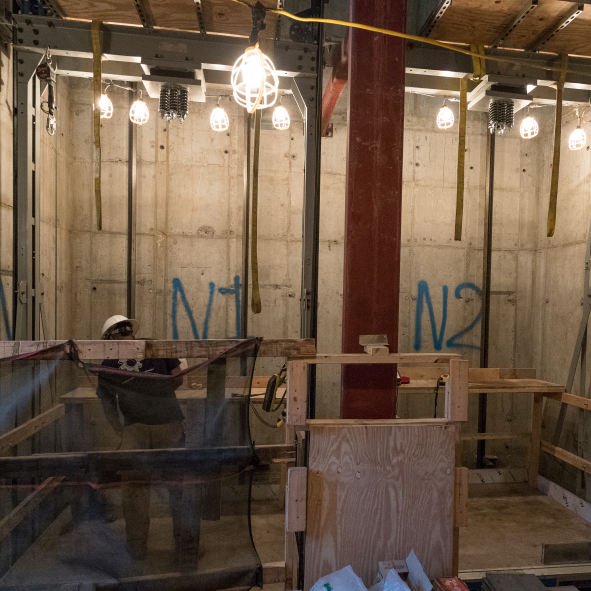

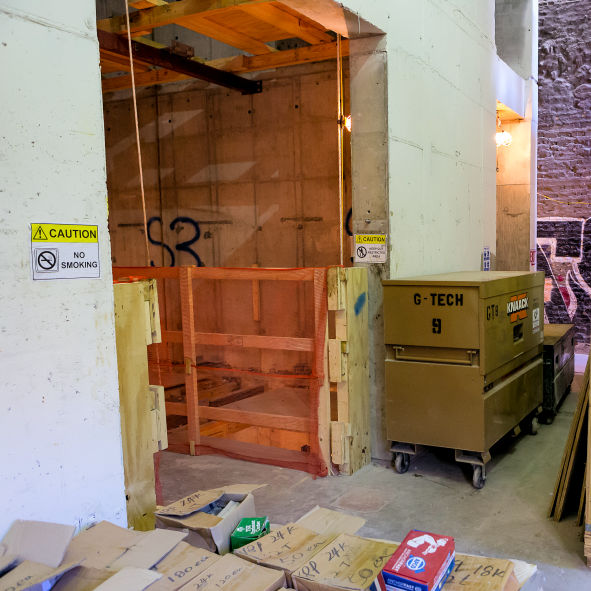

PE 1-4 Lobby

PE 1-4 Lobby

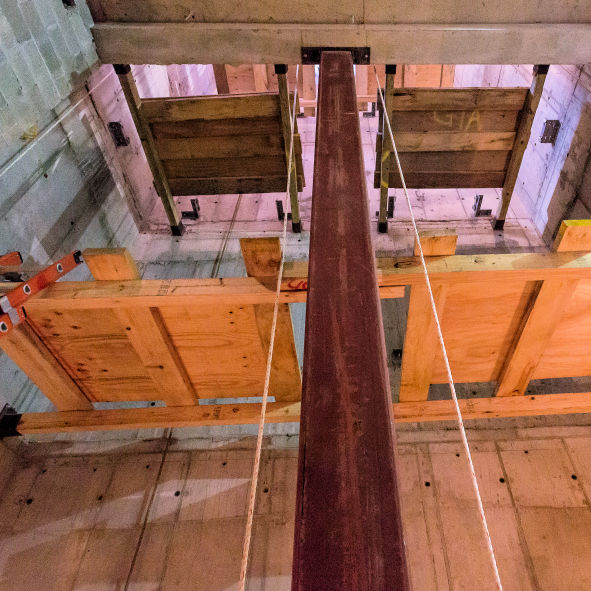

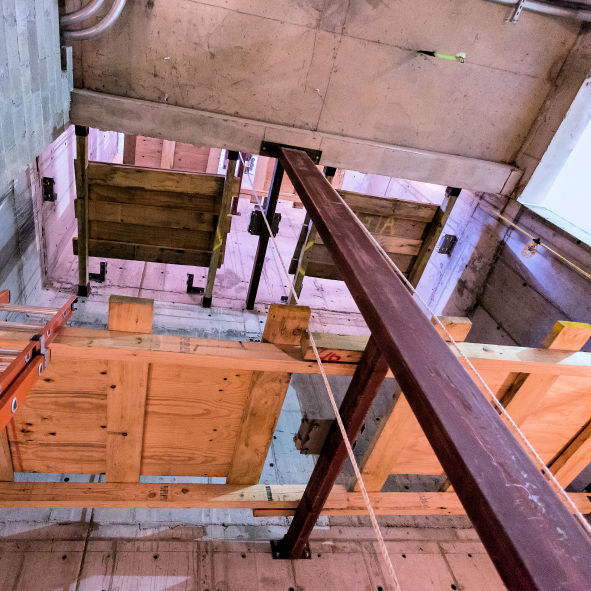

PE 1 and 2 Work Decks

PE 1 and 2 Work Decks


PE 1 and 2 Work Decks

PE 1 and 2 Work Decks

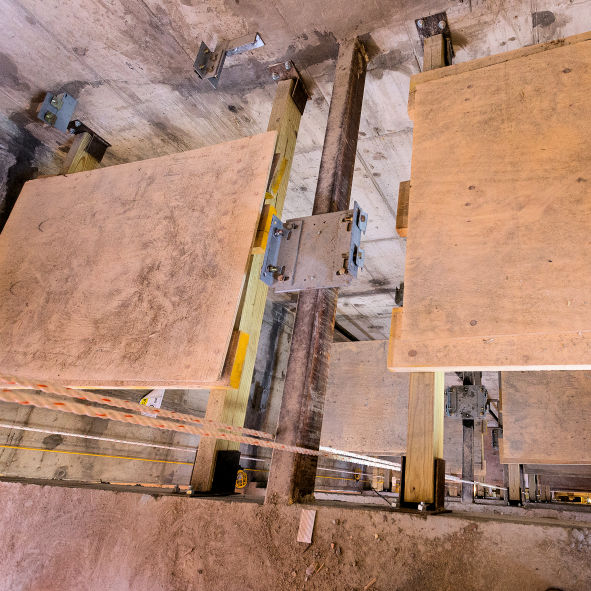

PE 1 and 2 Brackets

PE 1 and 2 Brackets

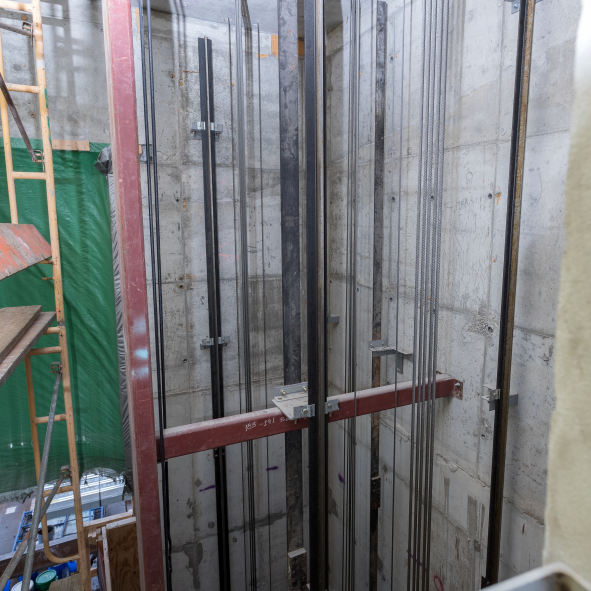

PE 1 and 2 Hoistway

PE 1 and 2 Hoistway

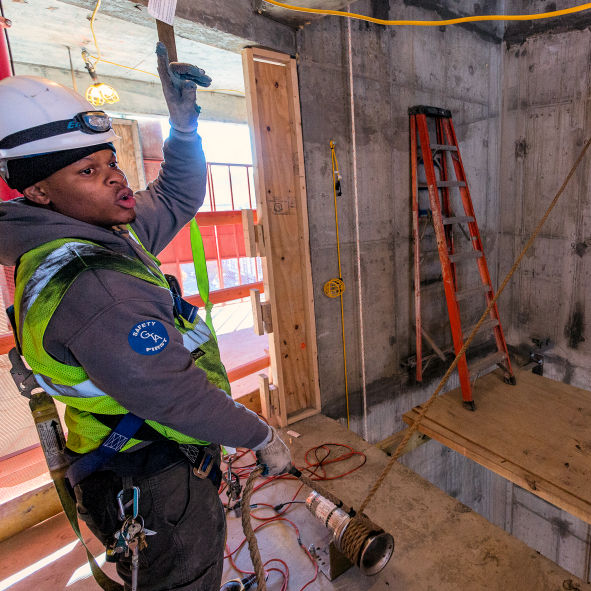

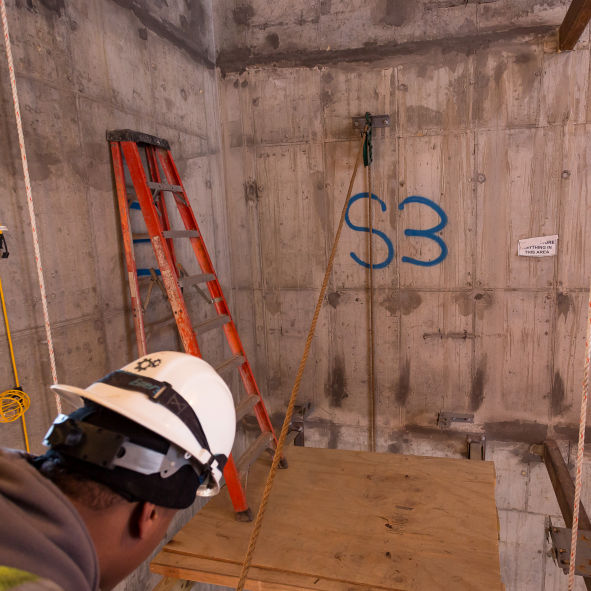

PE 1 Hoisting Rails

PE 1 Hoisting Rails

PE 1 Hoisting Rails

PE 1 Hoisting Rails

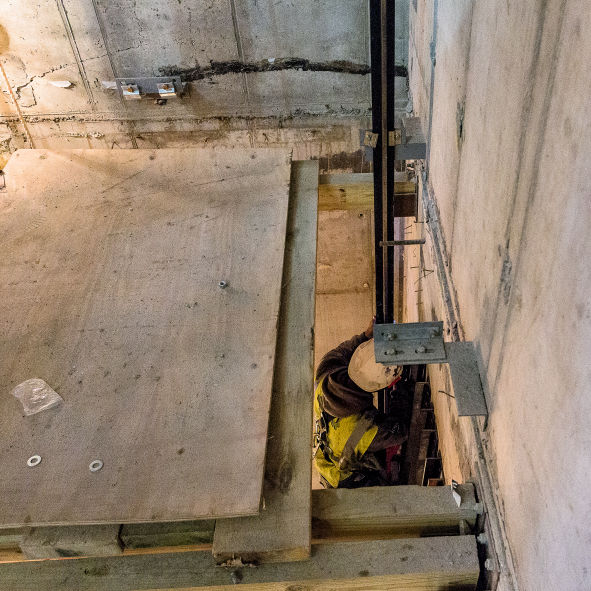

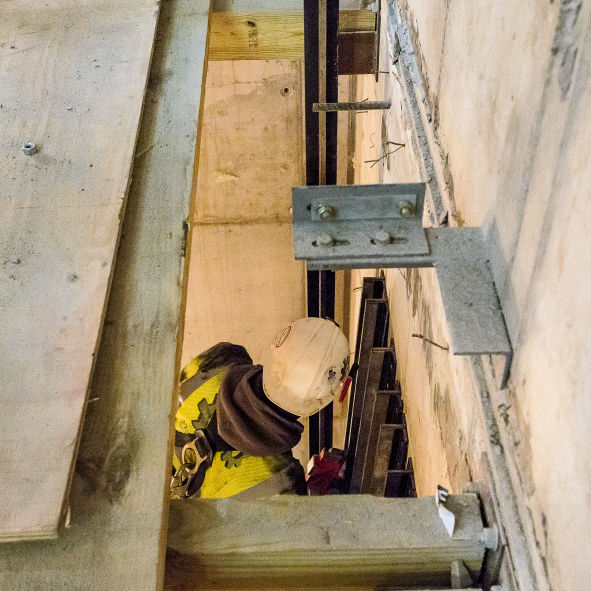

PE 1 Rail Installation

PE 1 Rail Installation

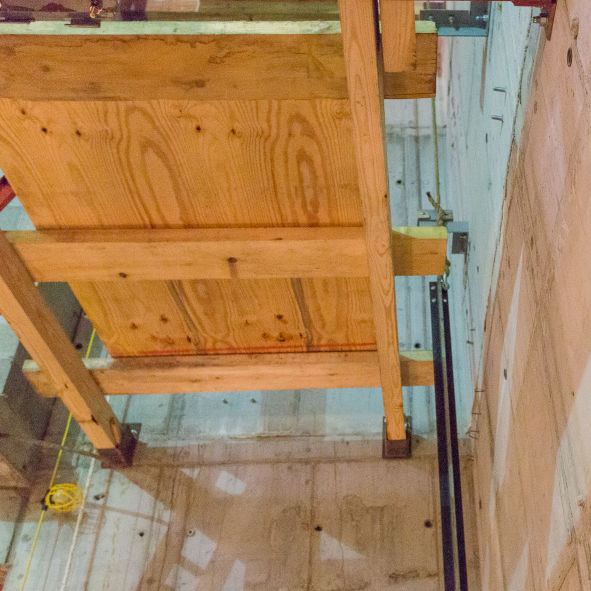

PE 1 Rail Installation

PE 1 Rail Installation

Hositing Rails

Hoisting Rails

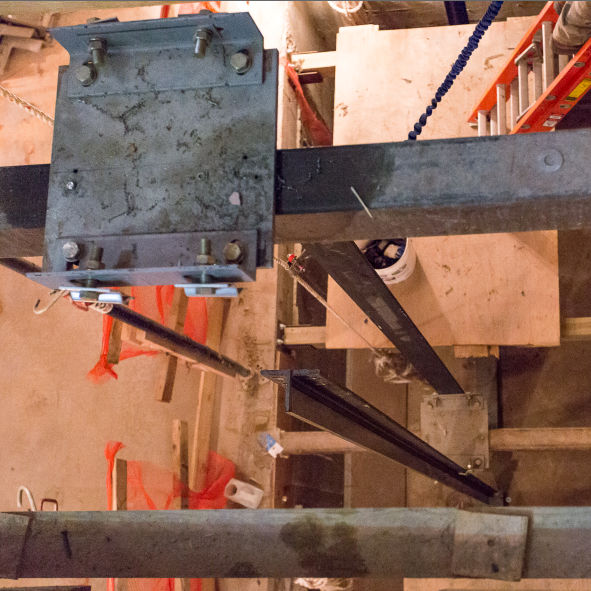

King Rails

King Rails

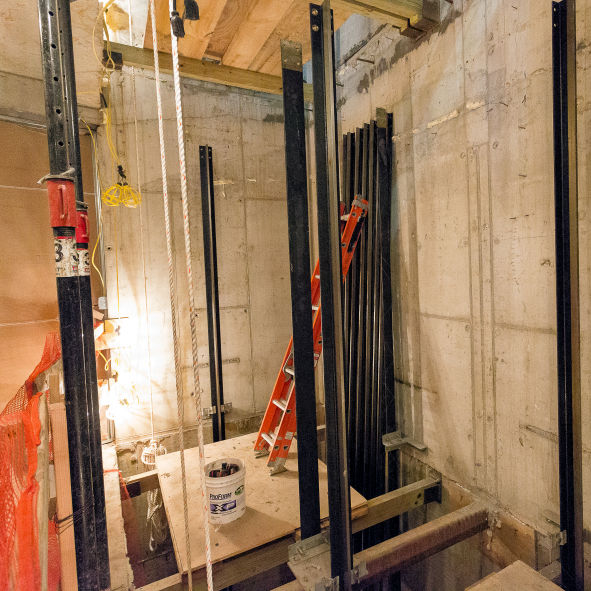

PE 1 Rails

PE 1 Rails

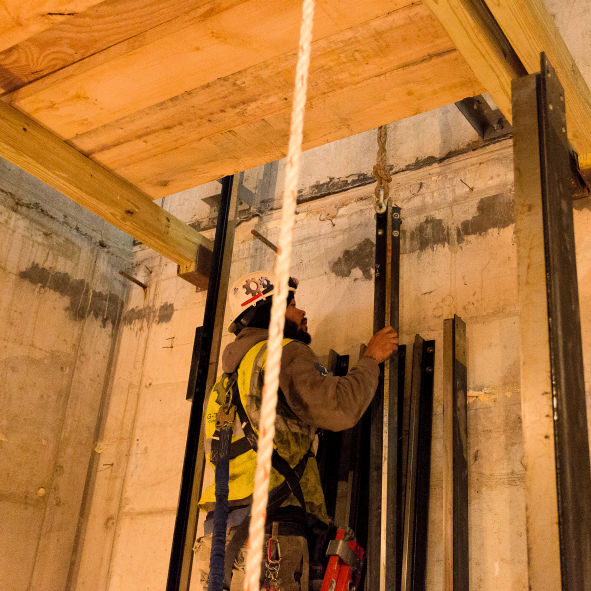

PE 3 Hoisting Rails

PE 3 Hoisting Rails

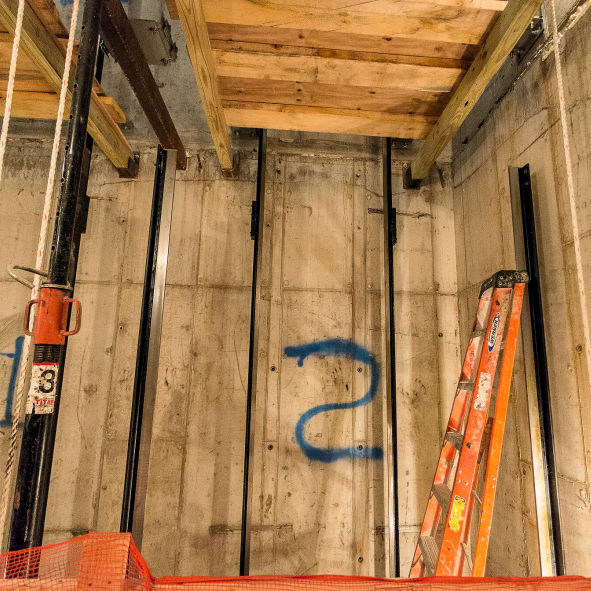

PE 2 Hoistway

PE 2 Hoistway

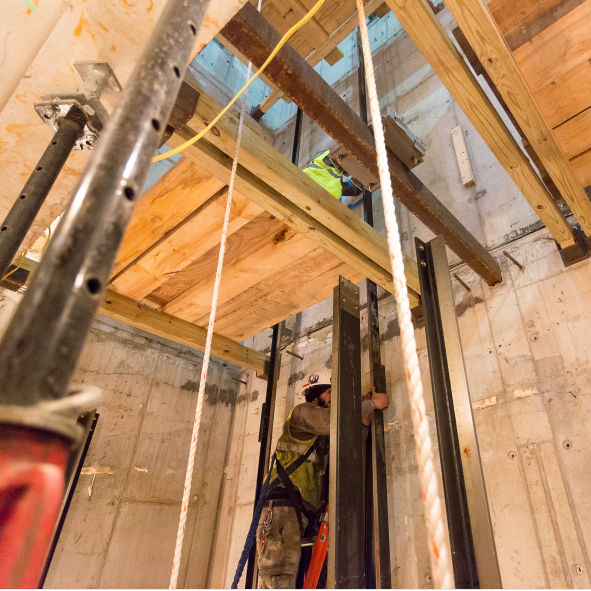

PE 3 Rail Connection

PE 3 Rail Connection

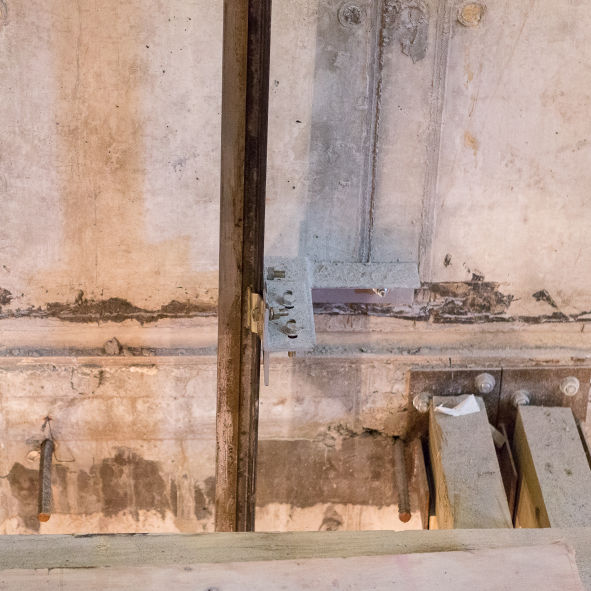

CWT Rail Bracket

CWT Rail Bracket

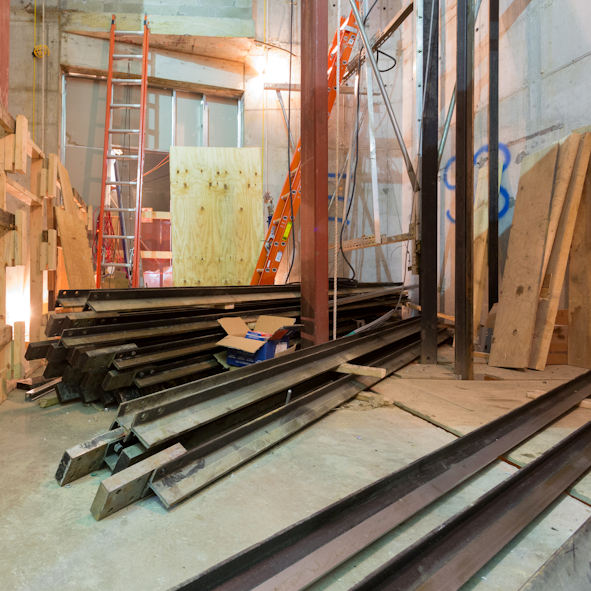

Rail Prep

Rail Prep

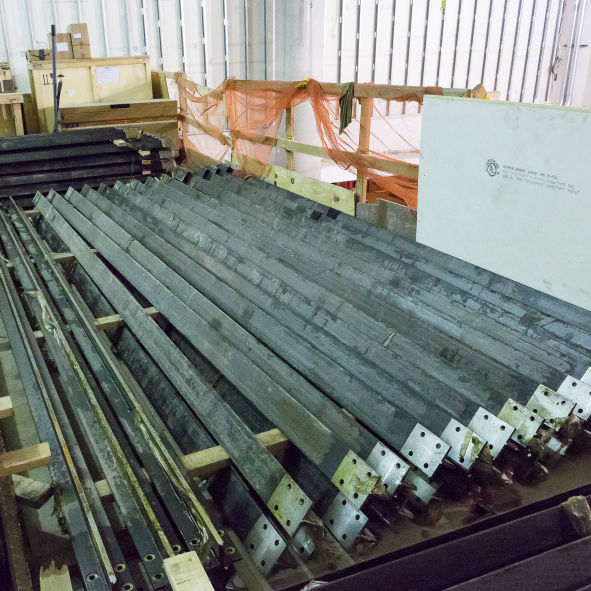

Rail Prep and Storage

Rail Prep and Storage

Rail Prep

Rail Prep

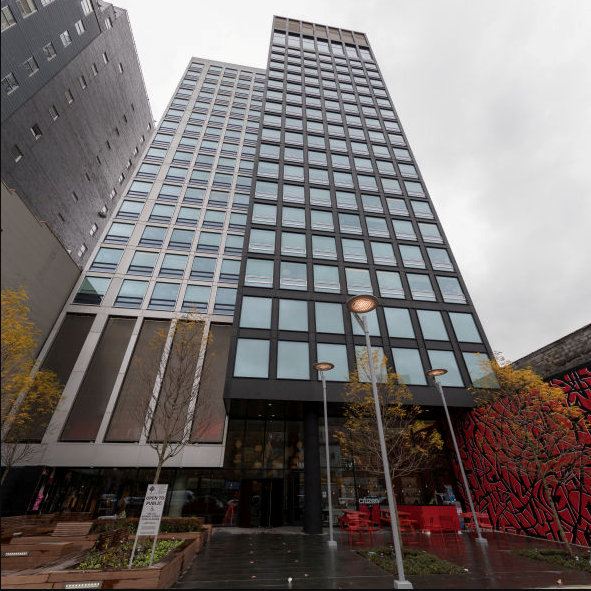

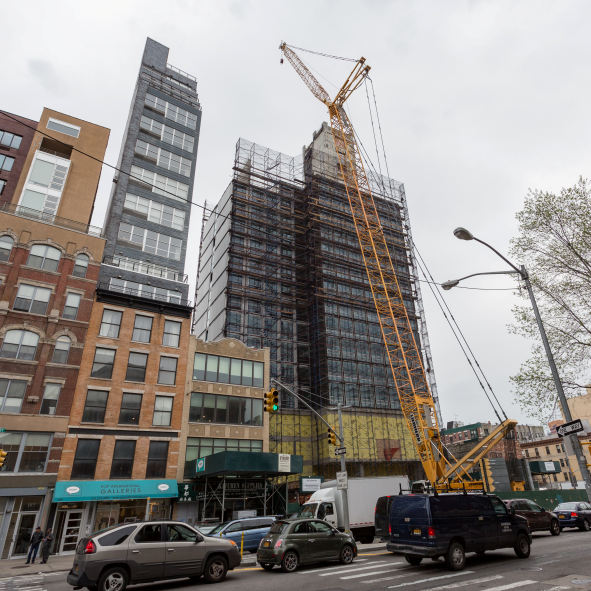

Front of Building

Front of Building

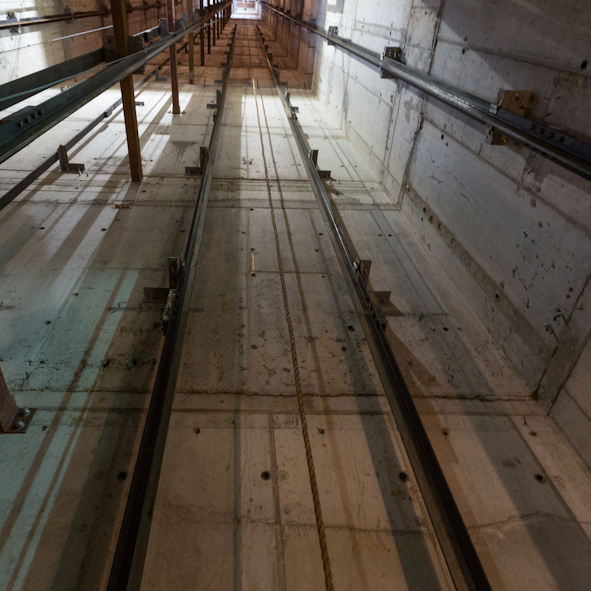

Shaft 2

Shaft 2

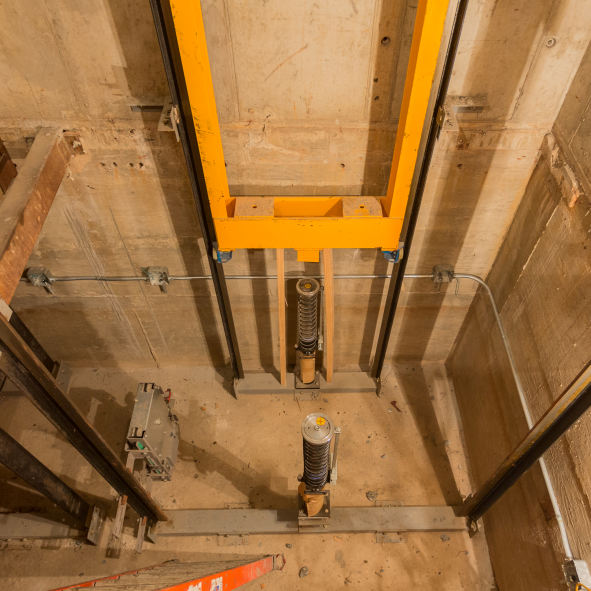

Car 2 CWT Frame

Car 2 CWT Frame

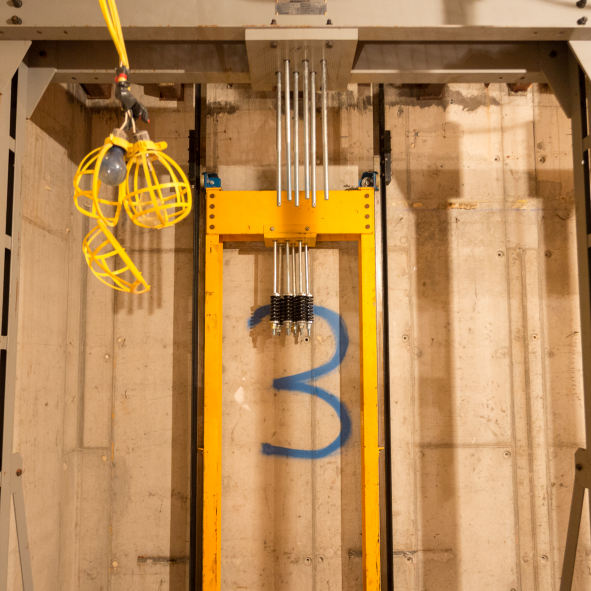

Car 3 CWT Frame

Car 3 CWT Frame

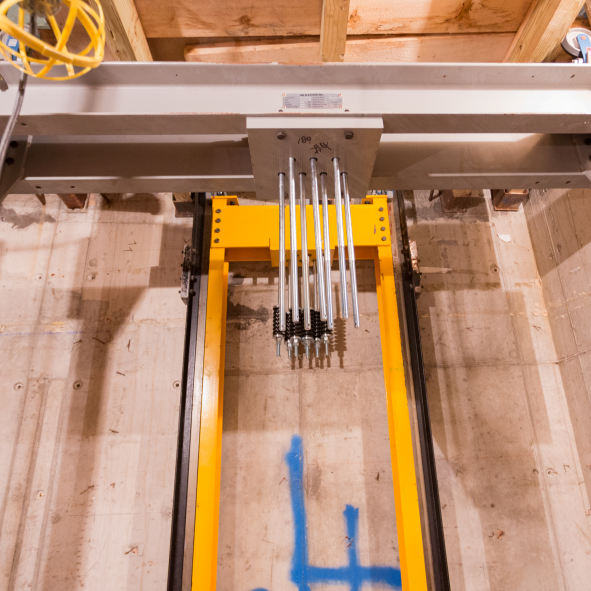

Car 4 CWT Frame

Car 4 CWT Frame

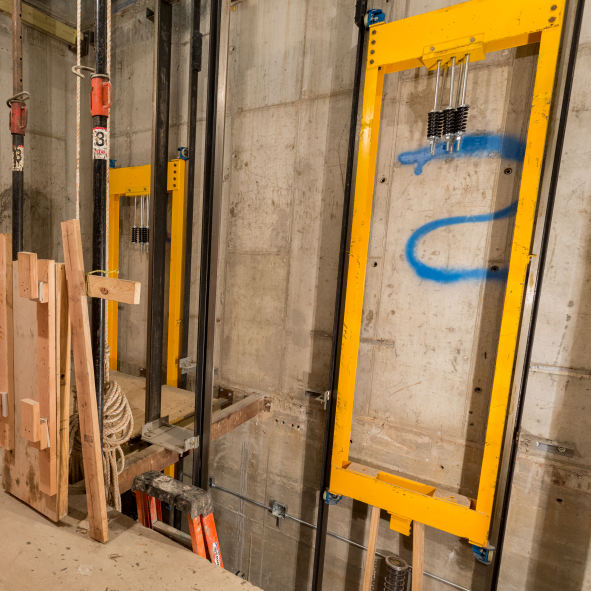

Car 1 and 2

Car 1 and 2

Car 4 Sling and Rollerguides

Car 4 Sling and Rollerguides

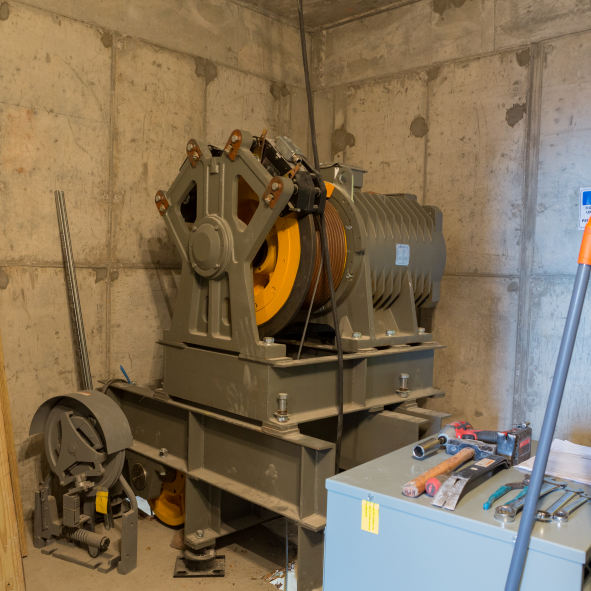

Car 2 Machine

Car 2 Machine

Car 3 Machine

Car 3 Machine

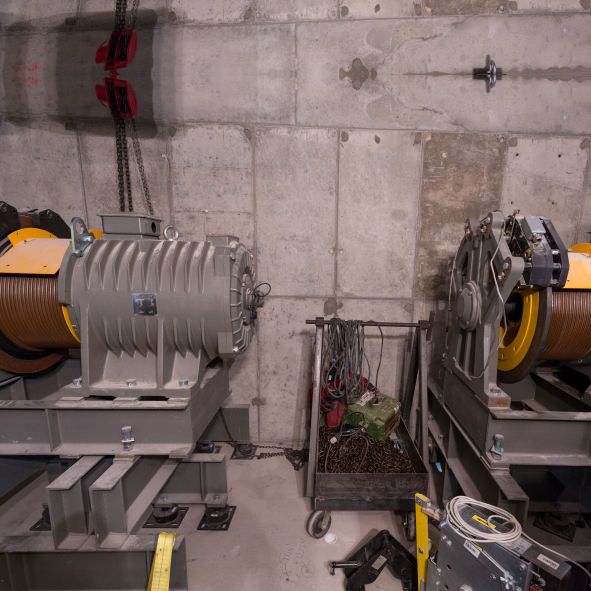

Car 3 and 4 Machines

Car 3 and 4 Machines

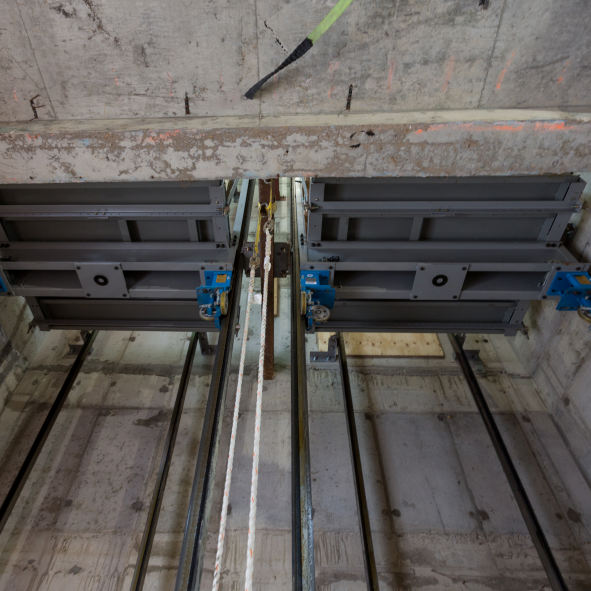

Car 1 and 2 Undercar

Car 1 and 2 Undercar

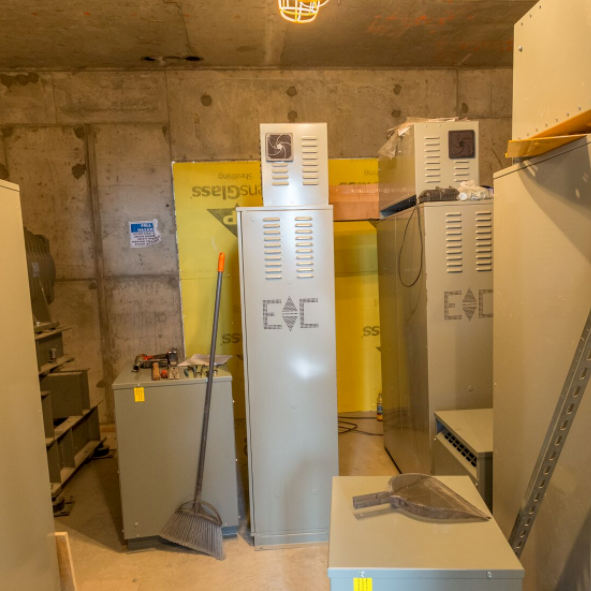

Controllers

Controllers

PE 1/2 at Lobby

PE 1/2 at Lobby

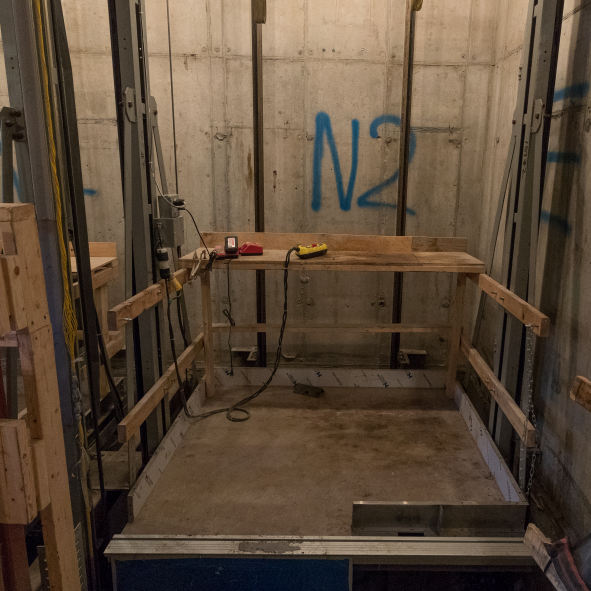

PE 2 Temp Platform

PE 2 Temp Platform

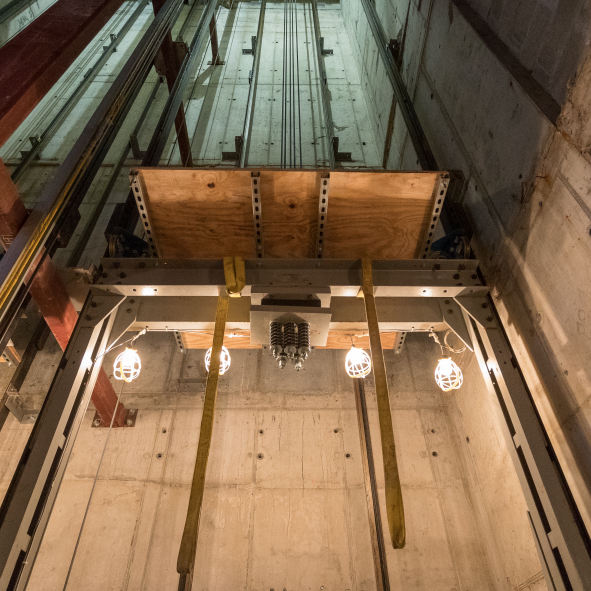

PE 2 Overhead Protection

PE 2 Overhead Protection

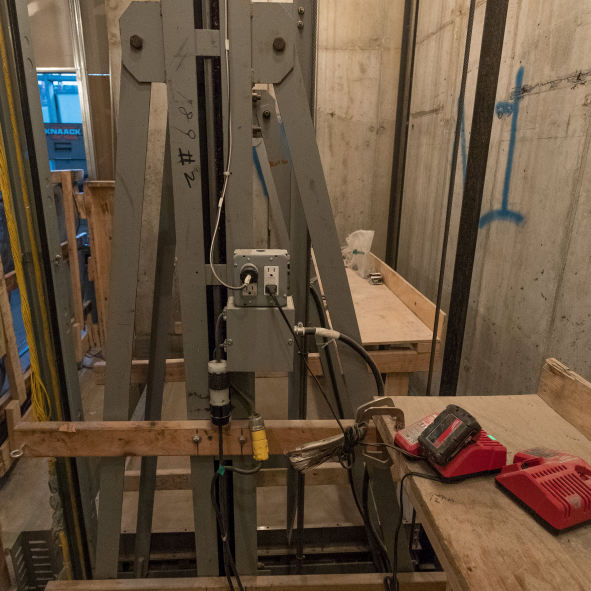

PE 2 Temp Power Station

PE 2 Temp Power Station

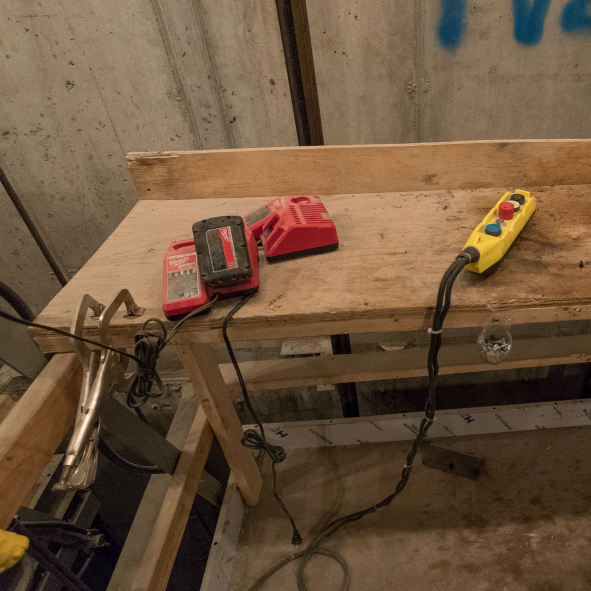

PE 2 Temp Workbench

PE 2 Temp Workbench

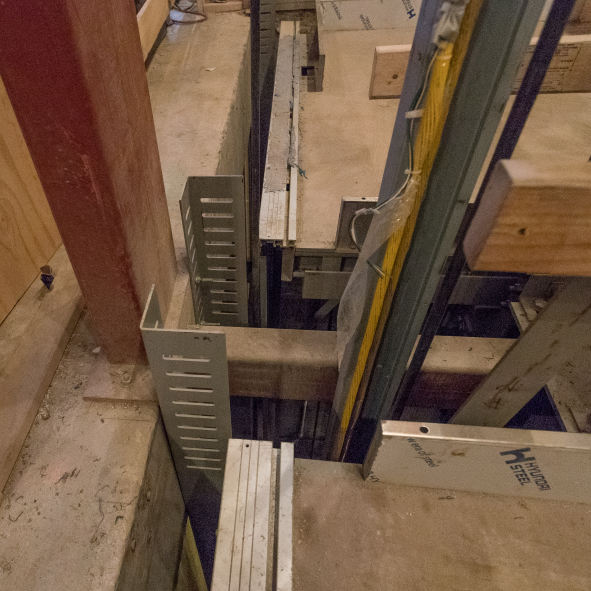

Tie Angles

Tie Angles

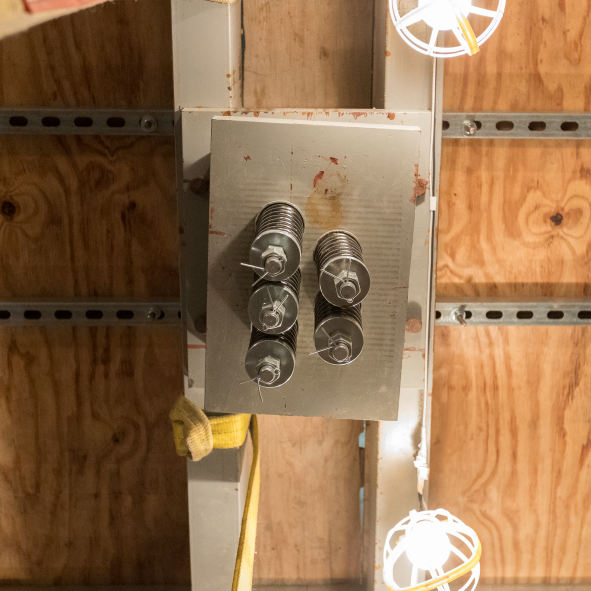

PE 2 Car Hitch Plate

PE 2 Car Hitch Plate

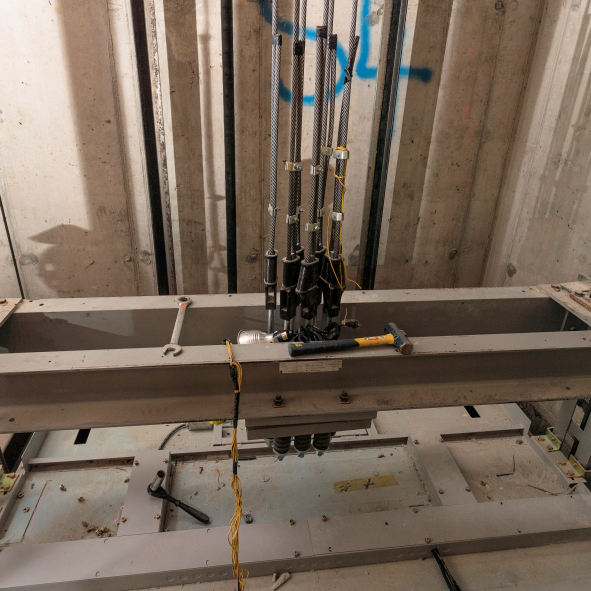

PE 4 Car Top

PE 4 Car Top

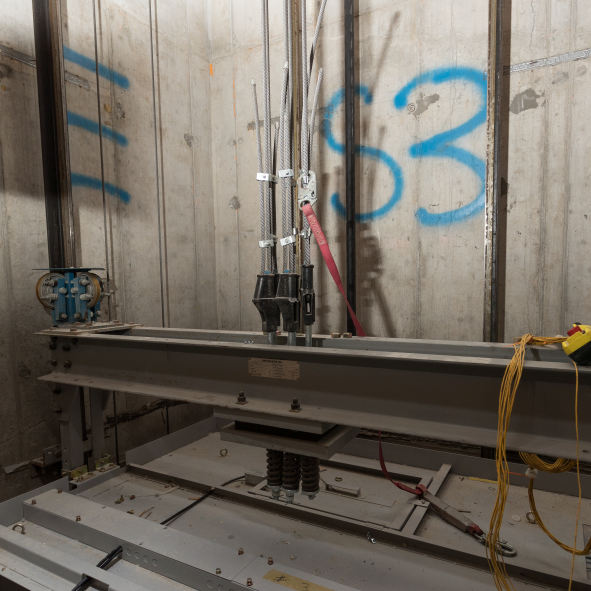

PE 3 Car Top

PE 3 Car Top

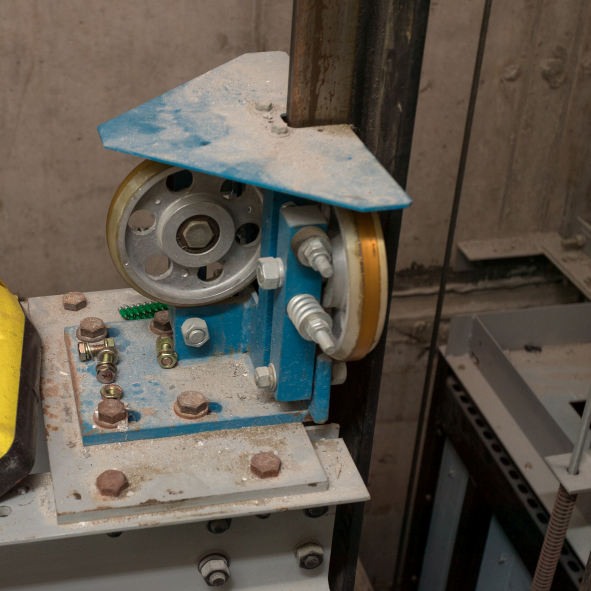

PE 3 Rollerguide

PE 3 Rollerguide

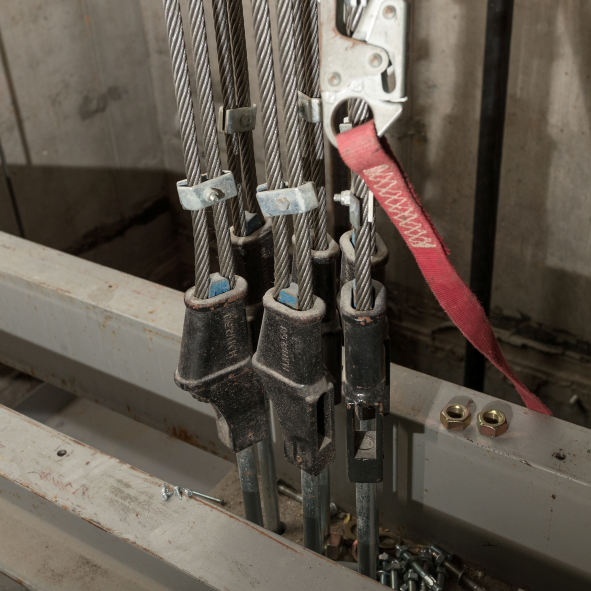

PE 3 Shackles

PE 3 Shackles

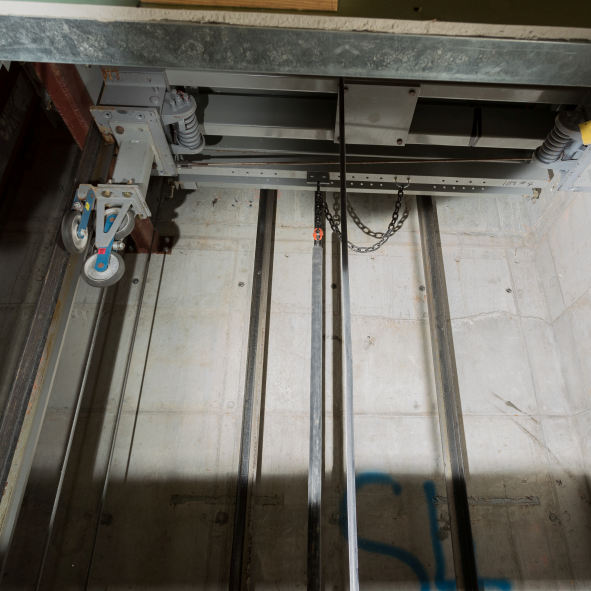

PE 4 Undercar

PE 4 Undercar

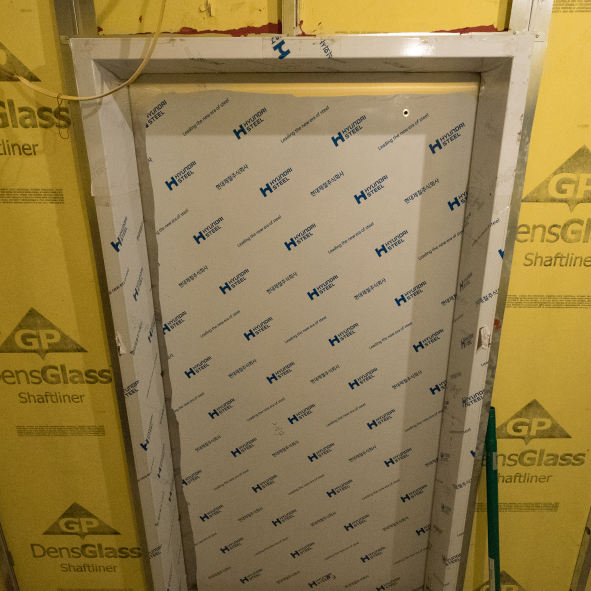

PE 3 Welded Door Jamb

PE 3 Welded Door Jamb

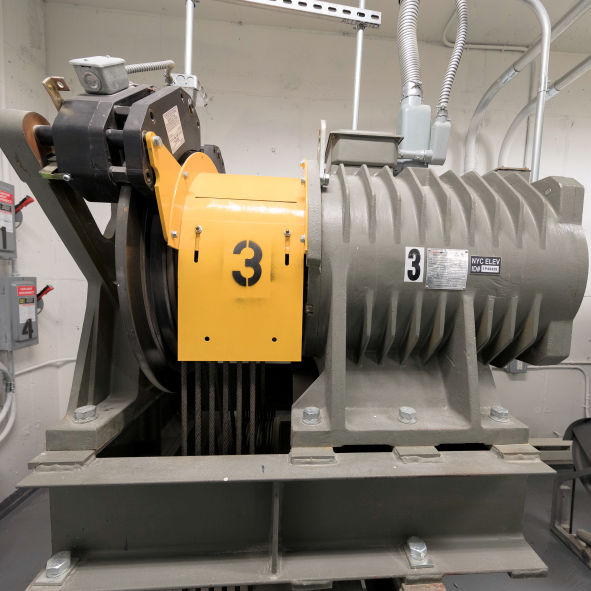

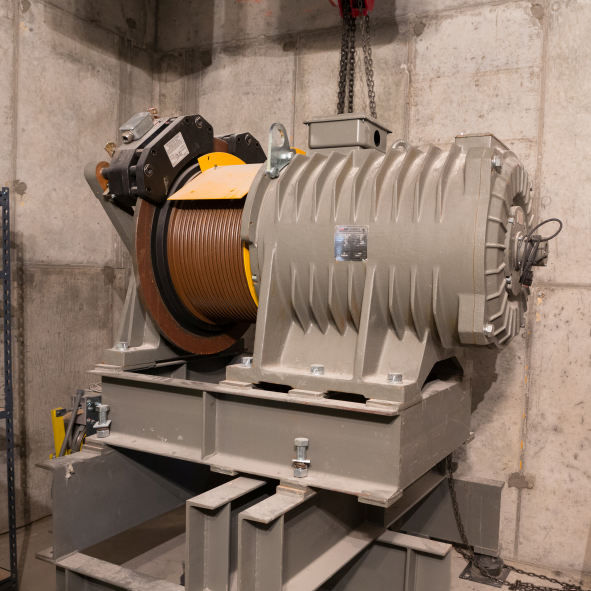

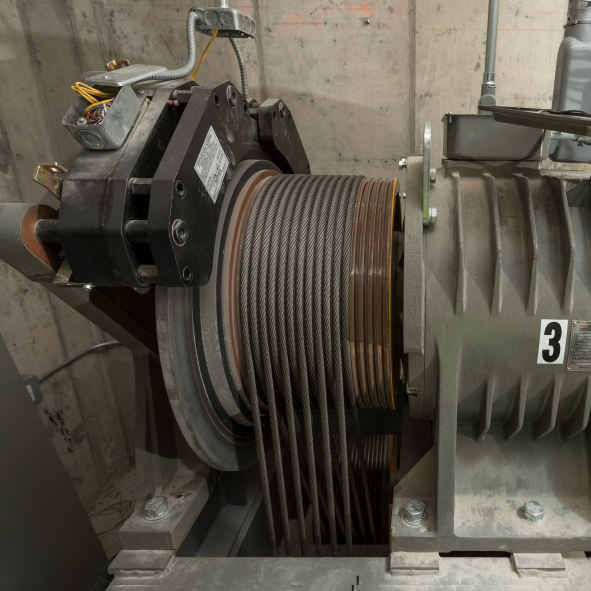

PE 3 Machine

PE 3 Machine

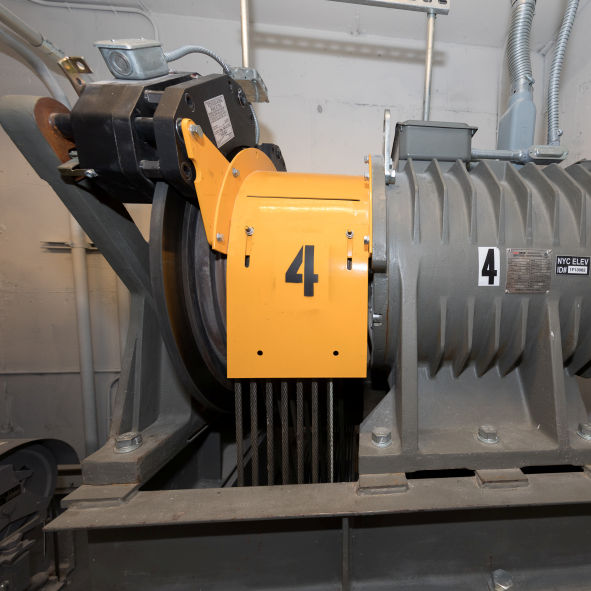

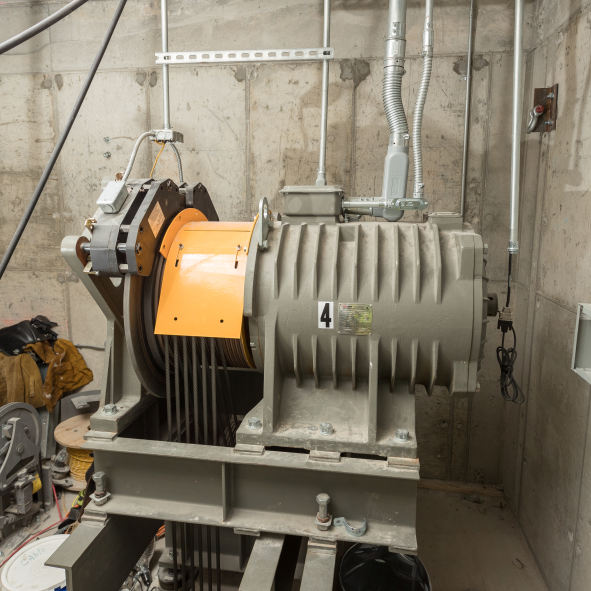

PE 4 Machine

PE 4 Machine

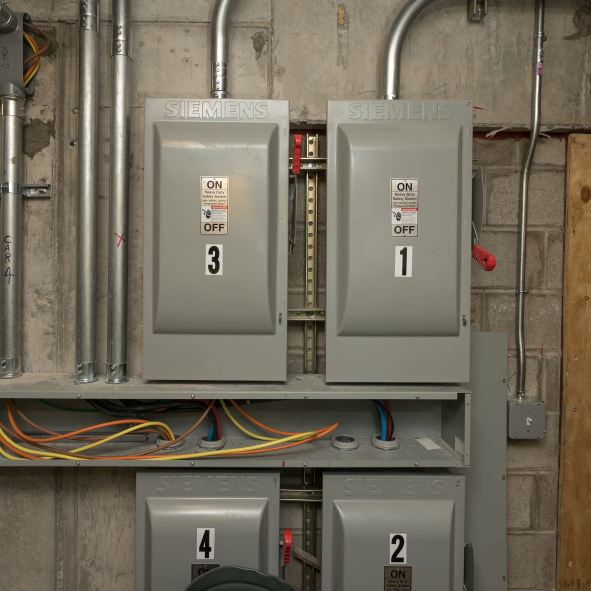

PE 1-4 Disconnects

PE 1-4 Disconnects

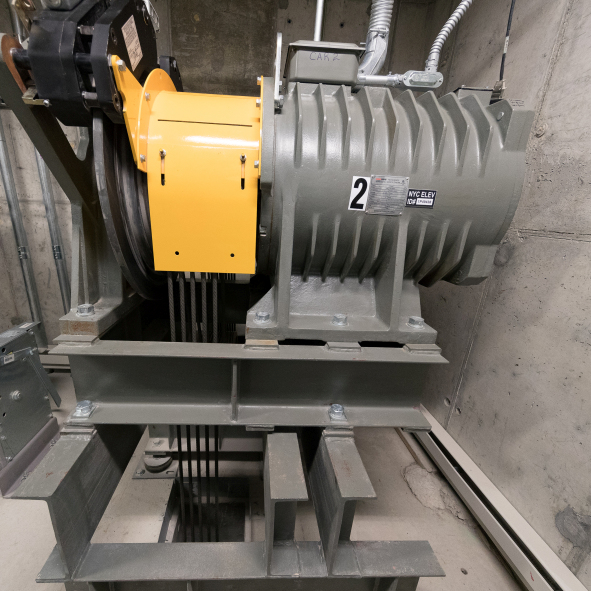

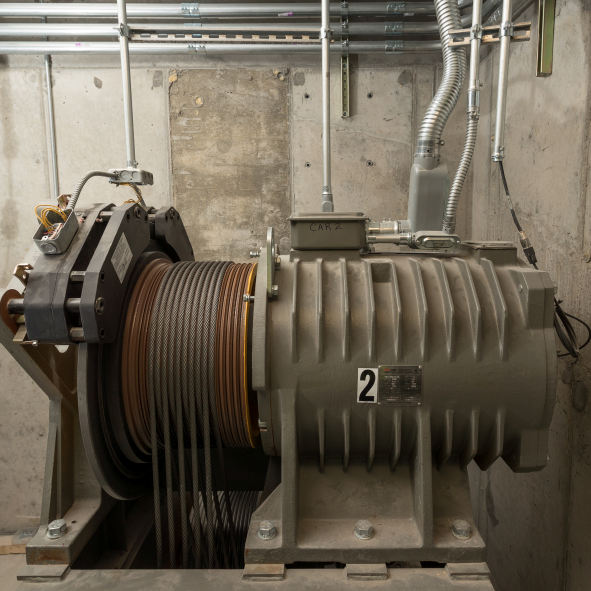

PE 2 Machine

PE 2 Machine

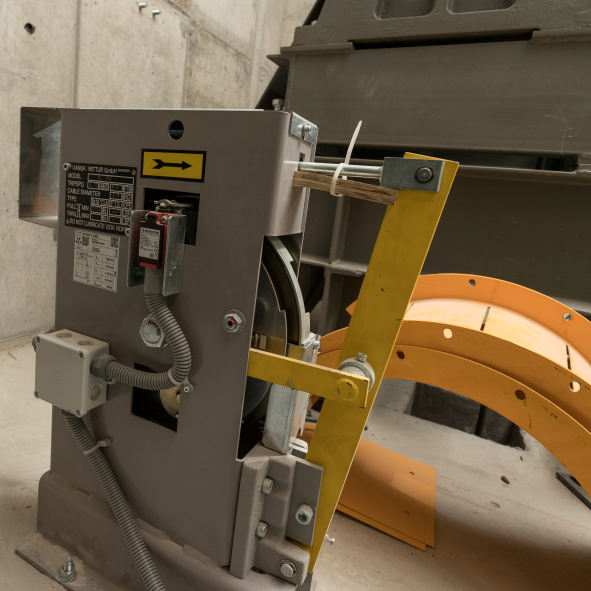

PE 4 Governor

PE 4 Governor

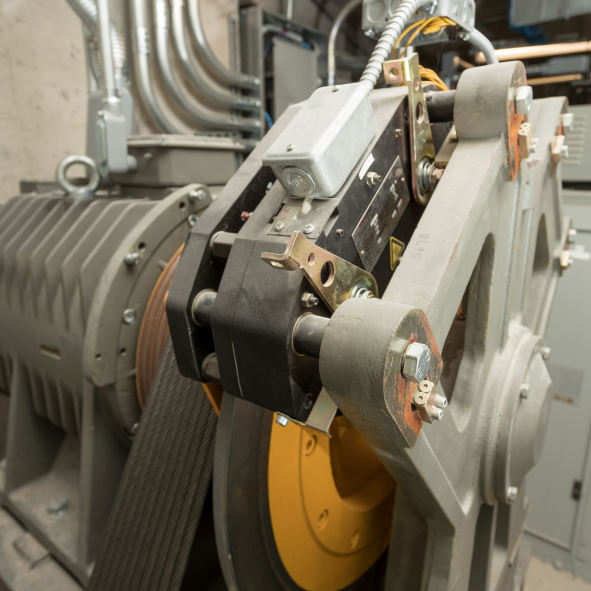

Emergency Brake

Emergency Brake


PE 1/2 Top of Shaft

PE 1/2 Top of Shaft

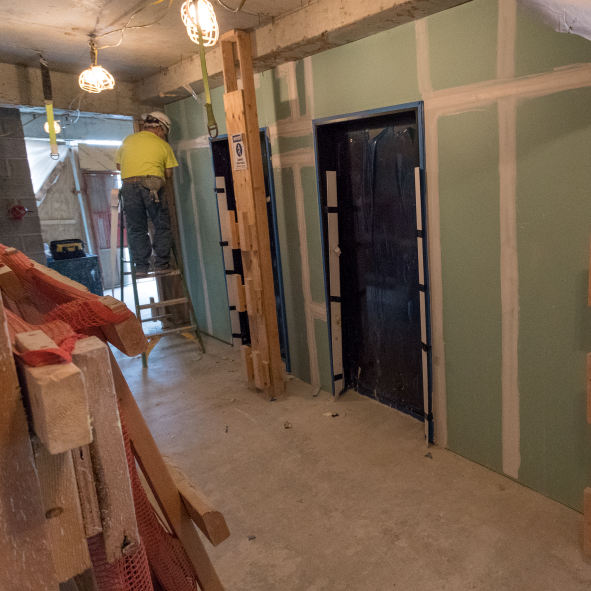

PE 1/2 Entrances

PE 1/2 Entrances

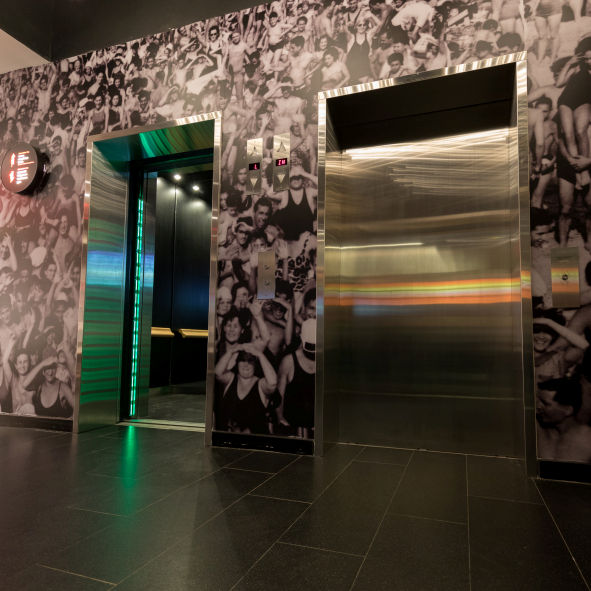

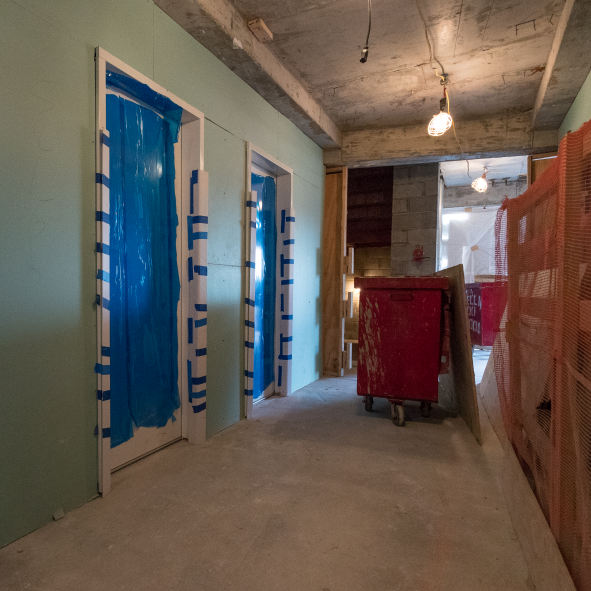

PE 3/4 Entrances

PE 3/4 Entrances

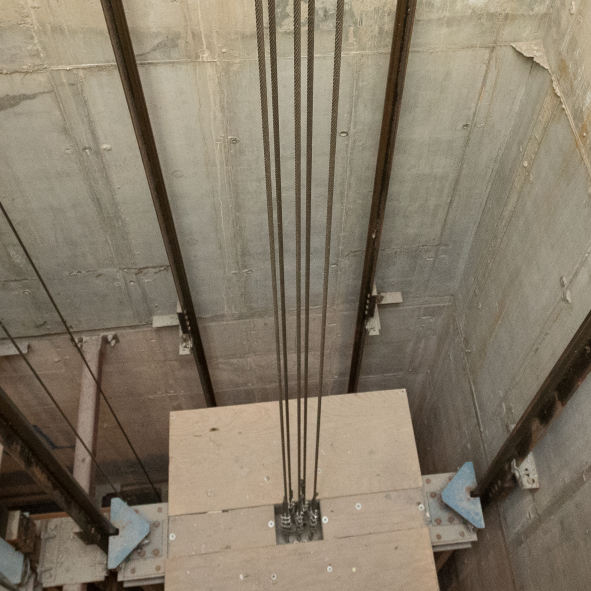

PE 1 Temp Protection

PE 1 Temp Protection

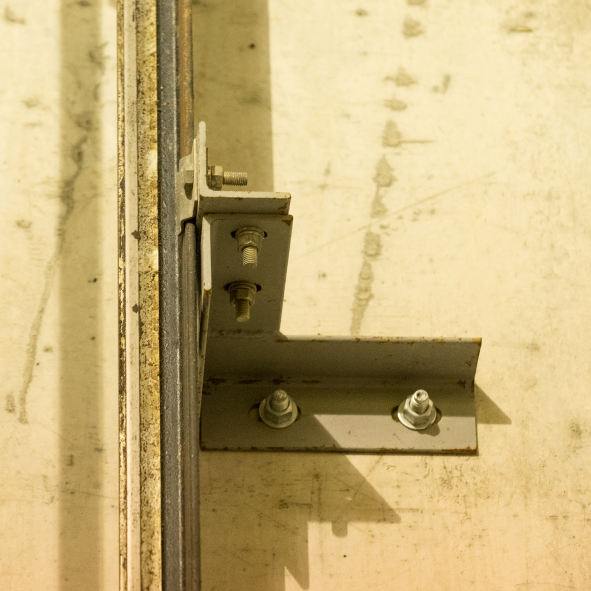

CWT L Bracket

CWT "L" Bracket

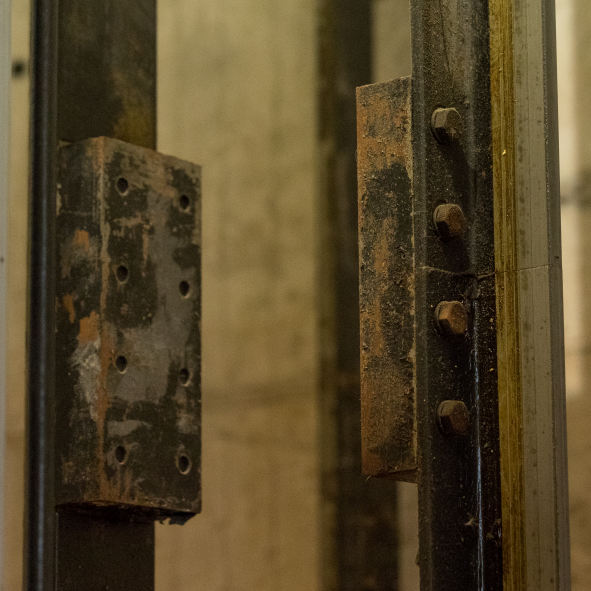

Main Rail Fishplate

Main Rail Fishplate

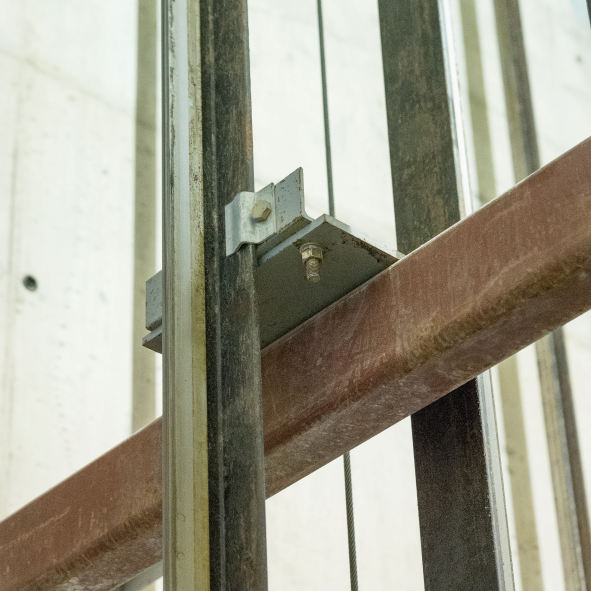

Divider Beam Bracket

Divider Beam Bracket

Stacking Filler Weights

Stacking Filler Weights

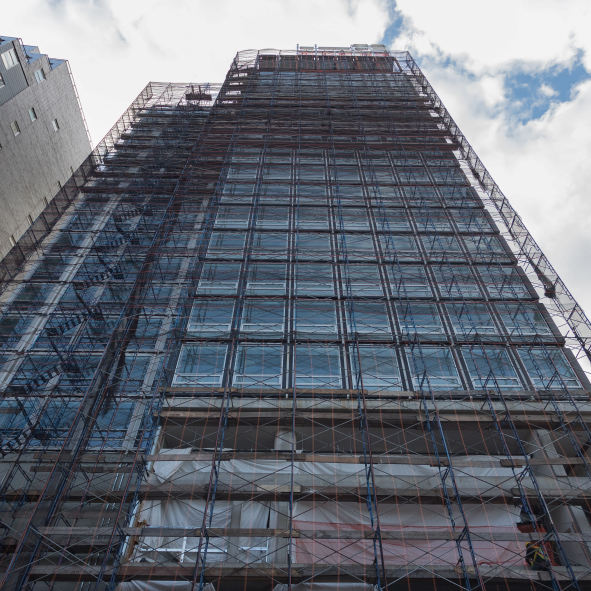

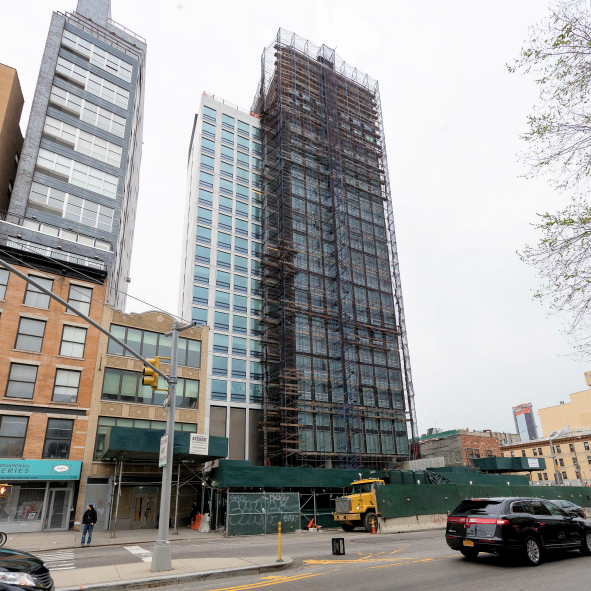

Front Elevation

Front Elevation

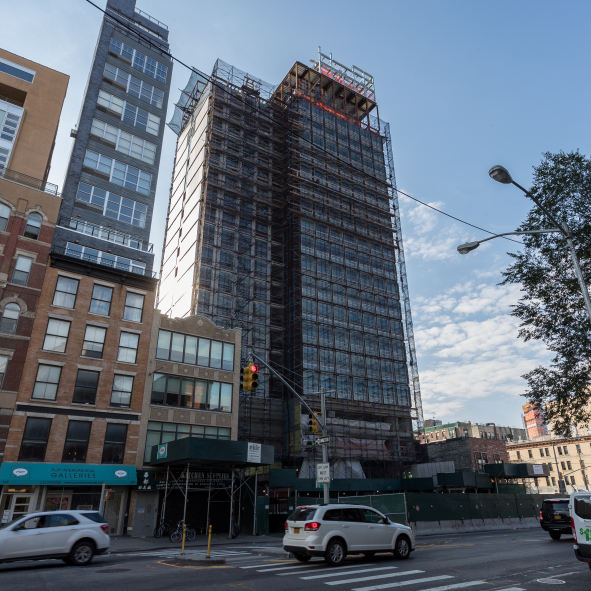

NW Elevation

NW Elevation


Stage 2

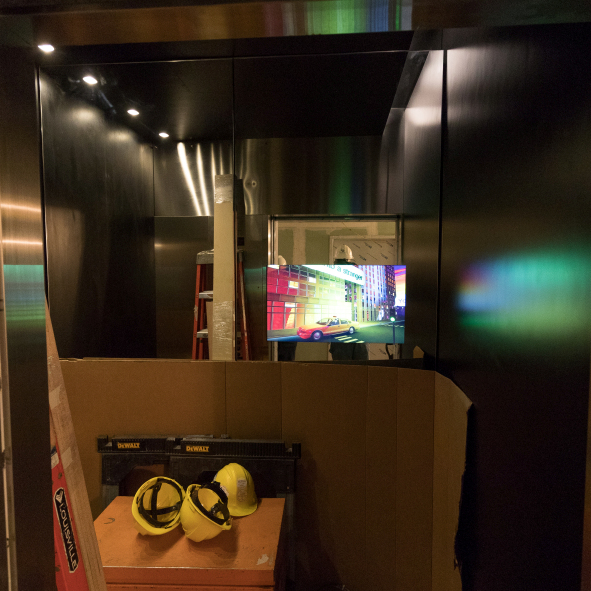

PE 3 Rear Cab Wall

PE 3 Rear Cab Wall

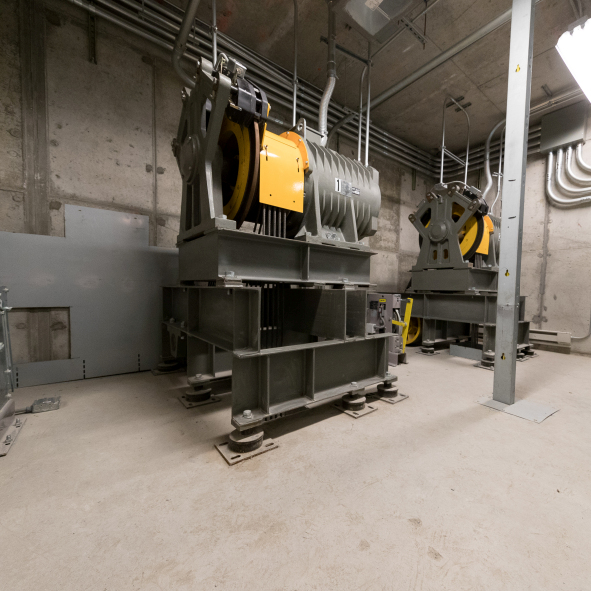

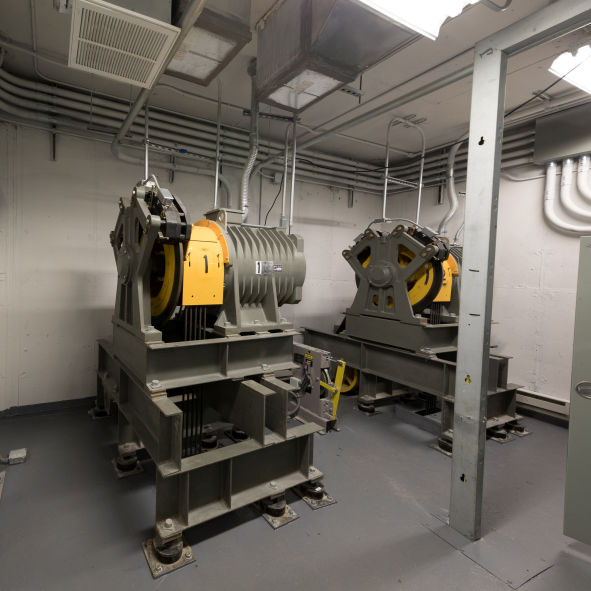

PE 1 and 2 Machines

PE 1 and 2 Machines

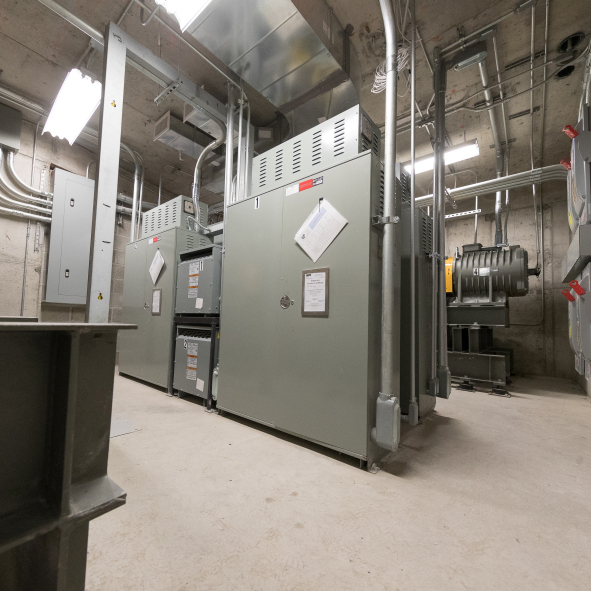

PE 1 and 2 Controllers

PE 1 and 2 Controllers

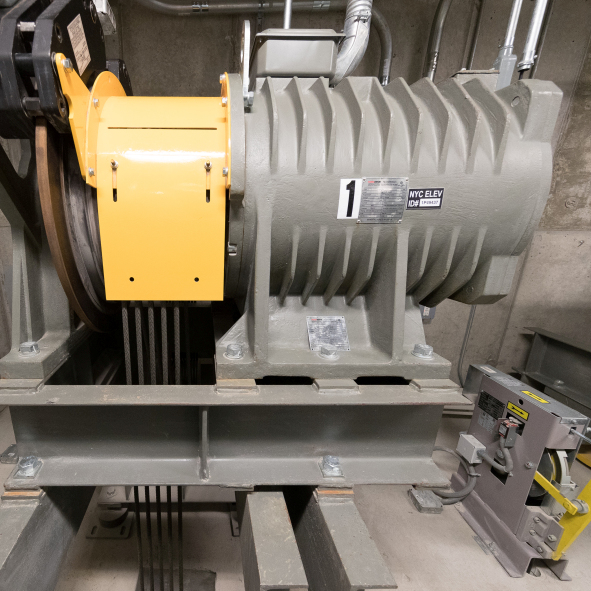

PE 1 Machine

PE 1 Machine

PE 2 Machine

PE 2 Machine

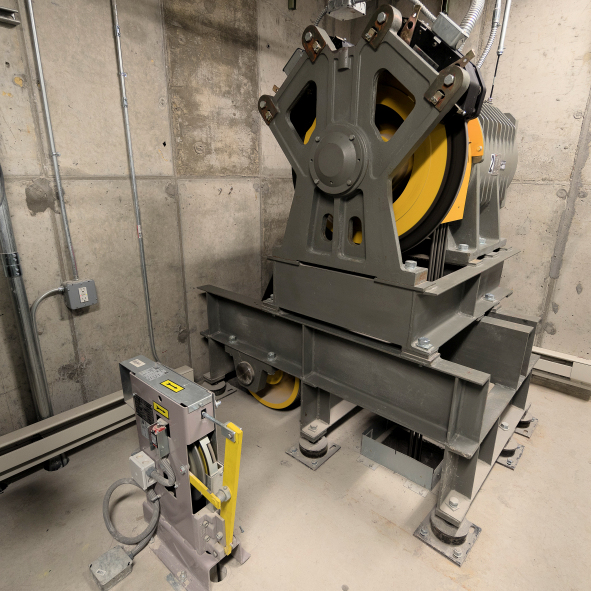

PE 2 Machine and Governor

PE 2 Machine and Governor

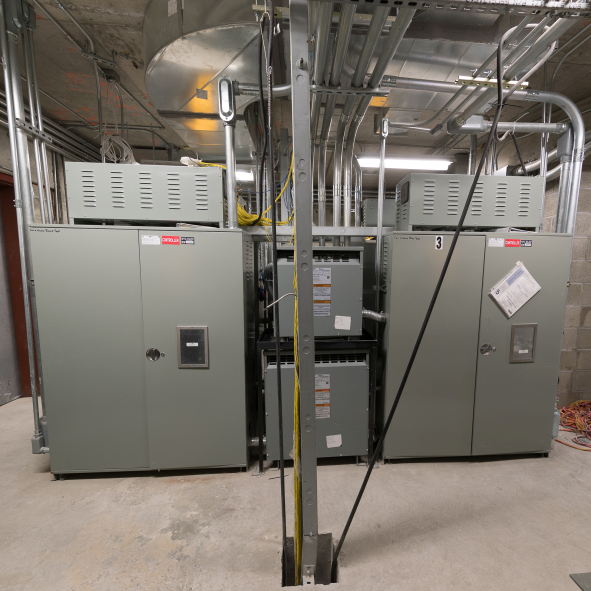

PE 3 and 4 Controllers

PE 3 and 4 Controllers

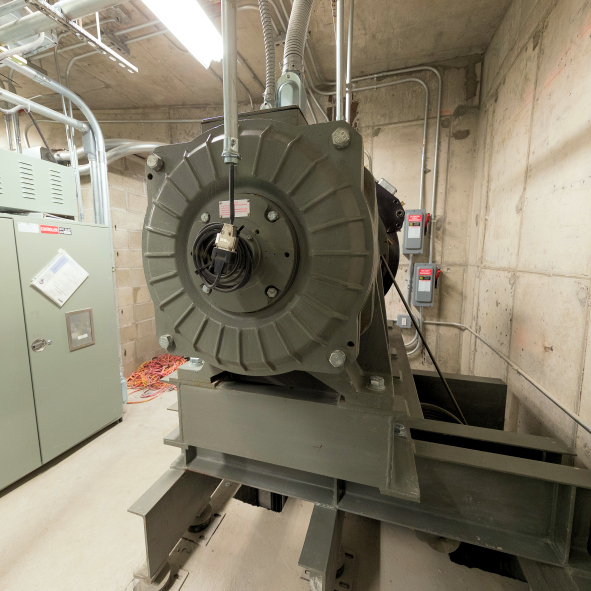

PE 3 Machine and Controller

PE 3 Machine and Controller

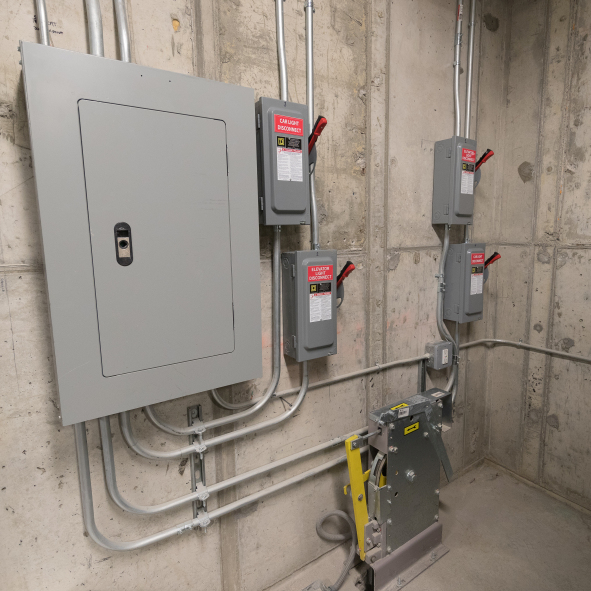

PE 1-4 Light Disconnects

PE 1-4 Light Disconnects

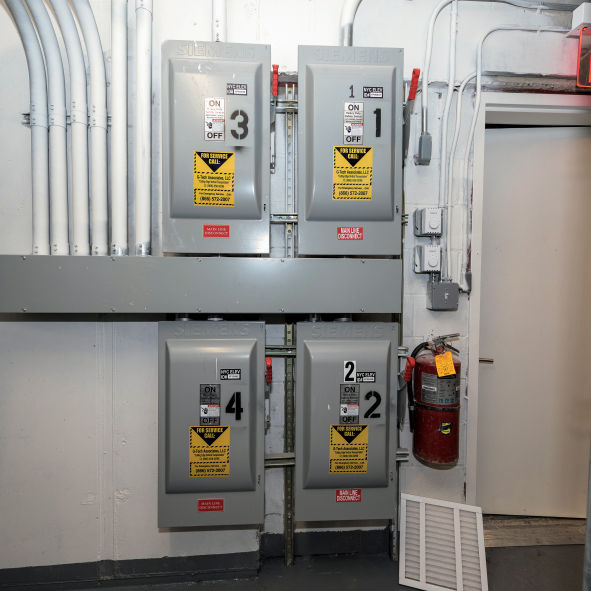

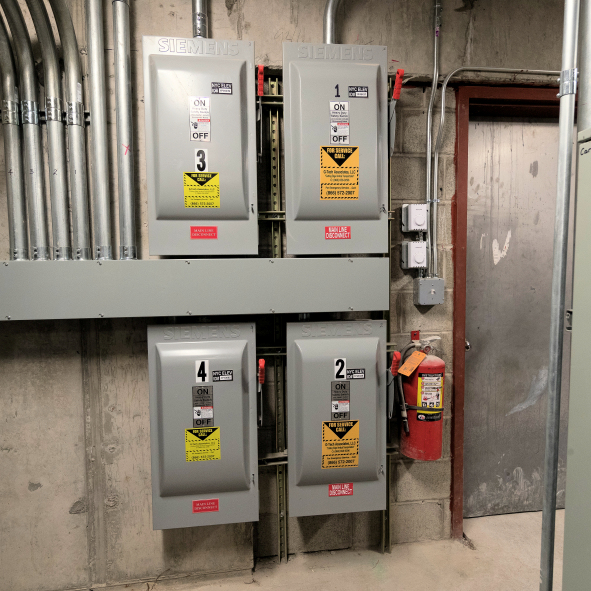

PE 1-4 Main Line Disconnects

PE 1-4 Main Line Disconnects

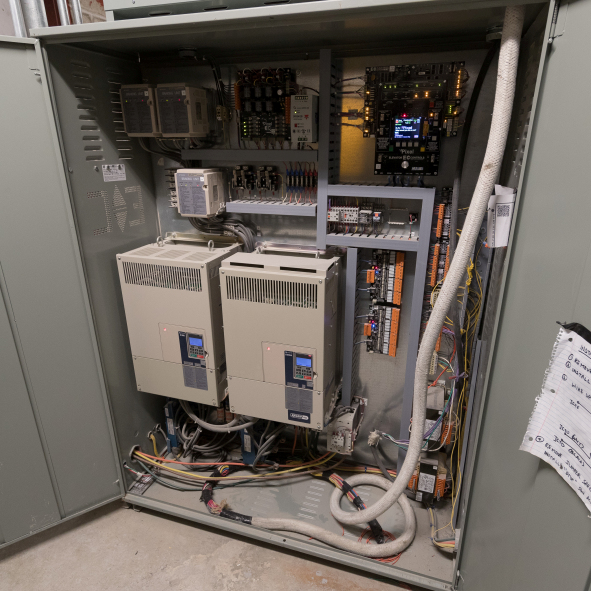

PE 3 Controller

PE 3 Controller

Front Elevation

Front Elevation


Stage 3

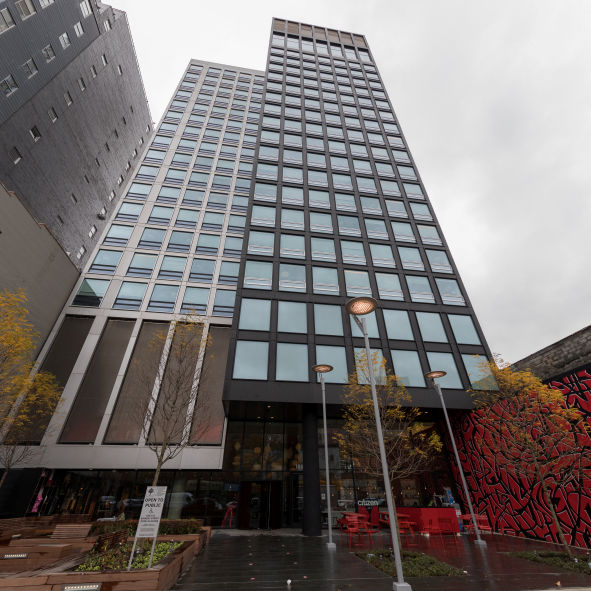

Front Courtyard and Elevation

Front Courtyard and Elevation

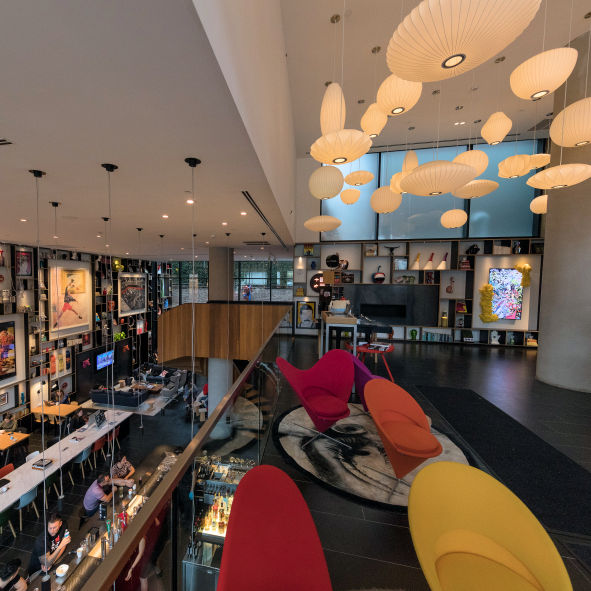

Main and Lower Lobby

Main and Lower Lobby

Lower Lobby

Lower Lobby

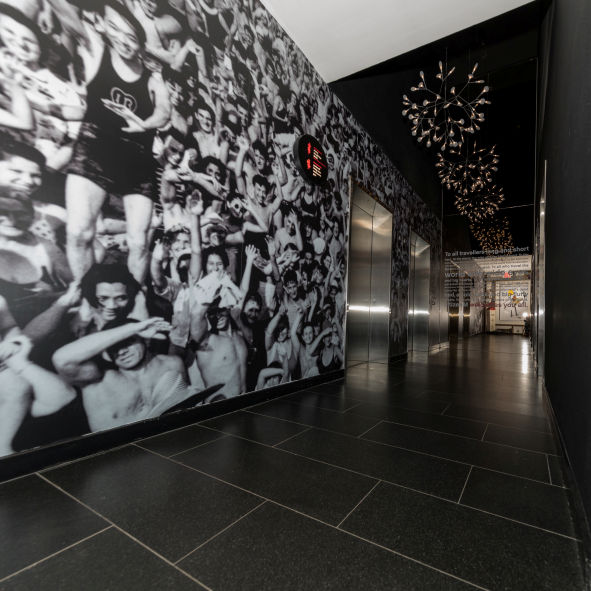

Main Lobby

Main Lobby

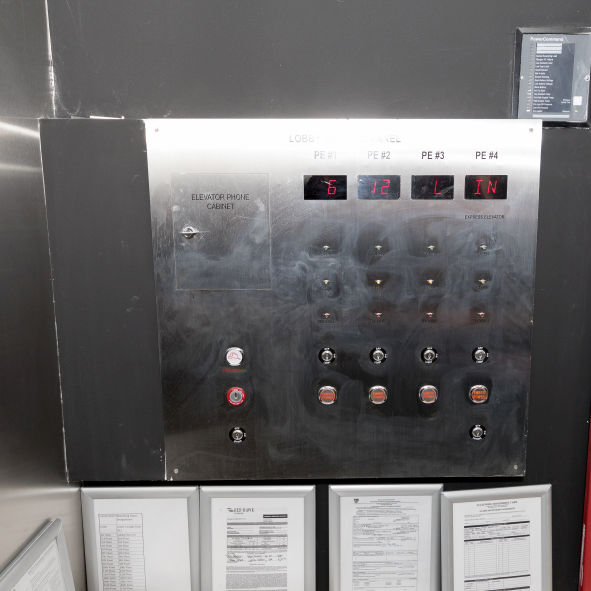

Lobby FCP

Lobby FCP

PE 3 and 4

PE 3 and 4


PE 3 and 4

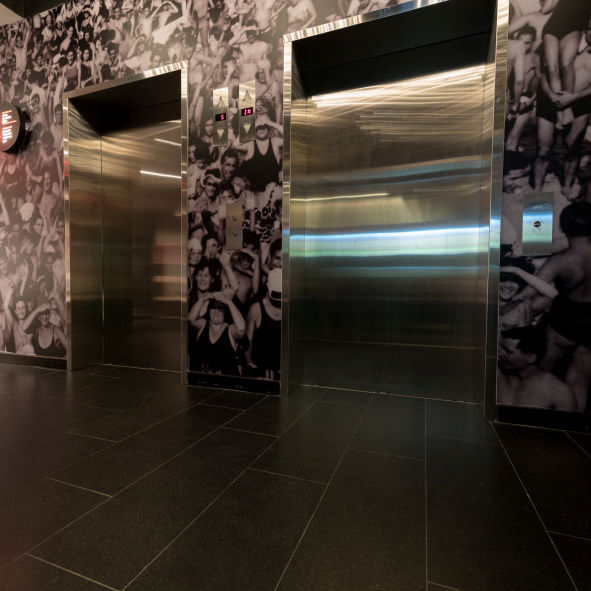

PE 3 and 4 Lobby

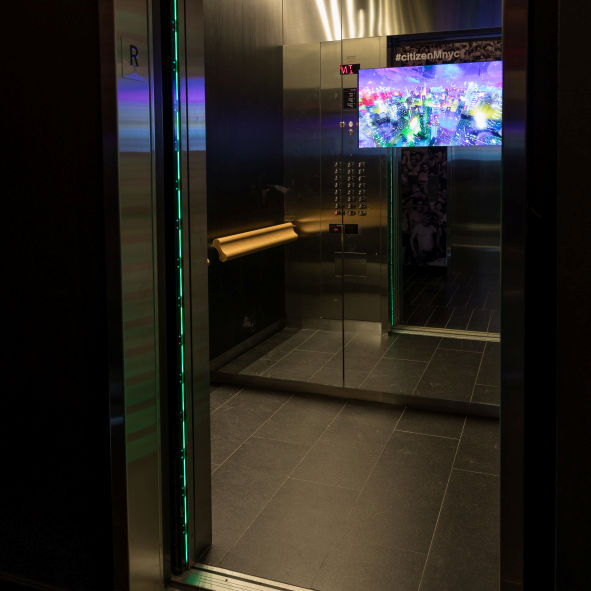

PE 3 Cab

PE 3 Cab

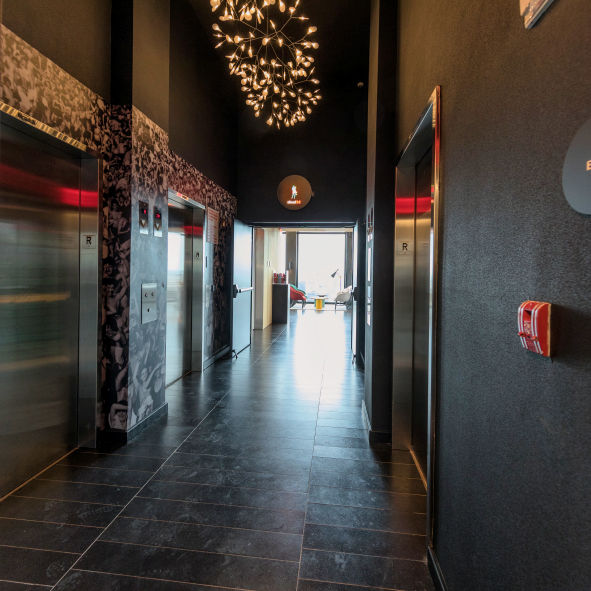

PE 1-4 at Roof

PE 1-4 at Roof


PE 1 & 2 Machines

PE 1 and 2 Machines

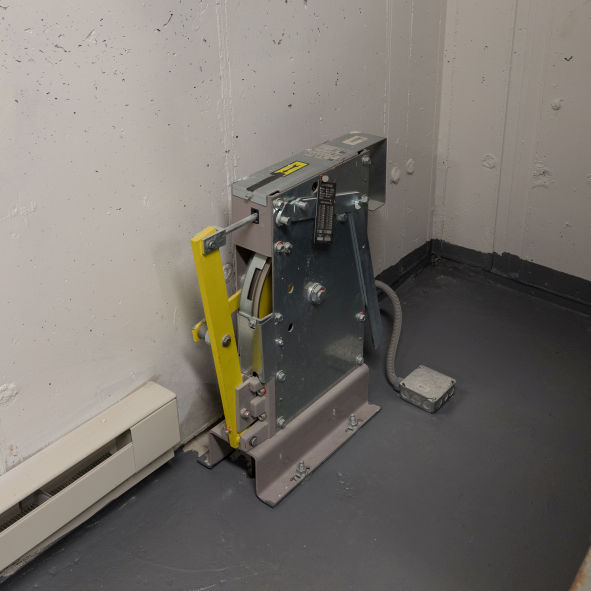

PE 1 Governor

PE 1 Governor

PE 1 & 2 Machines

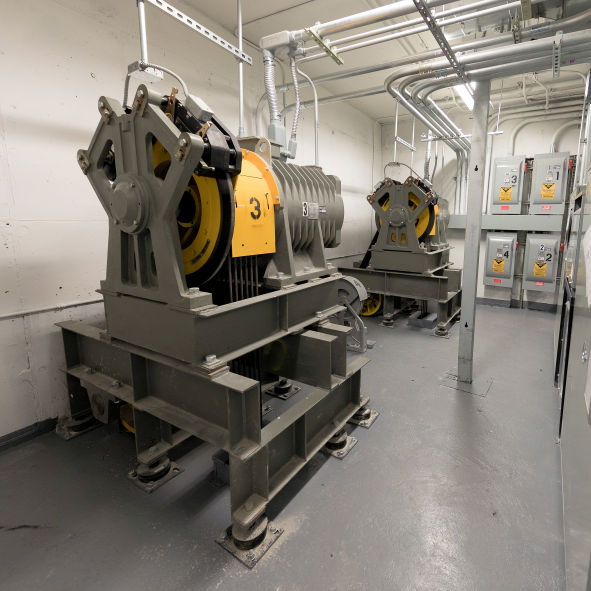

PE 3 and 4 Machines


PE 3 Machine

PE 3 Machine

PE 1-4 Mainline Disconnects

PE 1-4 Mainline Disconnects

PE 4 Machines

PE 4 Machine


Location

189 Bowery, New York, NY 10002

Completed

July 2018

General Contractor

The Rinaldi Group, LLC

Architect

Stephen B Jacobs Group

Consultant

Van Deusen & Associates

Scope Of Work

PE 1: Overhead Traction - 19 Stops - 2000 LBS - 500 FPM
PE 2: Overhead Traction - 19 Stops - 2000 LBS - 500 FPM
PE 3: Overhead Traction - 19 Stops - 2500 LBS - 500 FPM
PE 4: Overhead Traction - 19 Stops - 3500 LBS - 700 FPM

Manufacturers Used

HM Elevator, GAL Manufacturing, Torin Machines, Elevator Controls, EPCO, United Cabs, Hollister Whitney
